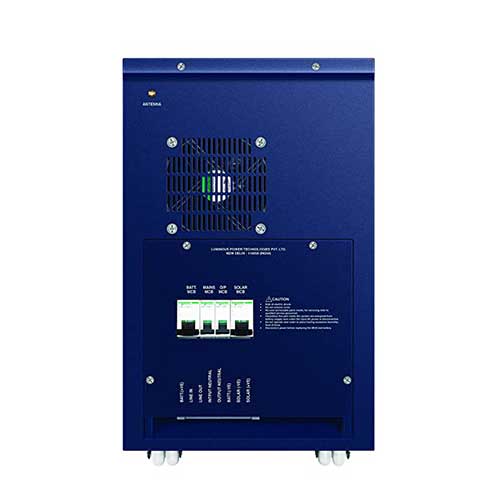

The Luminous PCU NXT 3Kw 48V Solar Inverter is a bi-directional hybrid inverter with a high-efficiency MPPT charge controller, built-in isolation transformer, and smart LCD display. It ensures safe, reliable, and efficient power management for homes, small businesses, and off-grid solar systems.
🔹 Key Features
✅ MPPT Charge Controller – Extracts up to 30% more power from solar panels.
✅ Hybrid Charging – Charges from both solar & mains/grid power.
✅ Built-in Isolation Transformer – Protects against grid surges and electrical noise.
✅ Priority Setting – Choose power priority from solar, battery, or grid.
✅ Comprehensive LCD Display – Shows charging time, supply status, and settings.
✅ Dual MCB Protection – Short-circuit protection for AC & DC.
✅ Pure Sine Wave Output – Ensures noiseless & safe operation of appliances.
✅ MNRE & IEC Certified – Complies with international safety & efficiency standards.
🔹 Technical Specifications
| Feature | Specification |
|---|---|
| Model | Luminous PCU NXT 3Kw |
| VA Rating | 3.75 kVA |
| Rated AC Power | 230V, 13A, Single Phase |
| Maximum Panel Power | 3000 Wp |
| Input Voltage Range (Vmp) | 65V – 130V |
| MPPT Input Voltage Range (Voc) | 80V – 165V |
| Nominal Battery Bank Voltage | 48V |
| Output Waveform | Pure Sine Wave |
| Charging Type | MPPT (Maximum Power Point Tracking) |
| Dimensions (L×W×H) | 300 × 504 × 515 mm |
| Weight | 50 kg |
| Warranty | 24 months |
| Compliance Standards | IEC-61683, IEC-60068, IEC-60529 |
| Application Areas | Homes, Shops, Commercial Use, Off-Grid Systems |
🔹 Applications
🔹 Solar Hybrid Systems – Seamlessly integrates solar, battery, and grid power.
🔹 Backup Power Solutions – Provides uninterrupted power during outages.
🔹 Commercial & Residential Use – Ideal for homes, offices, and businesses.
🔹 Off-Grid Solar Installations – Works in remote areas with unreliable grid supply.
