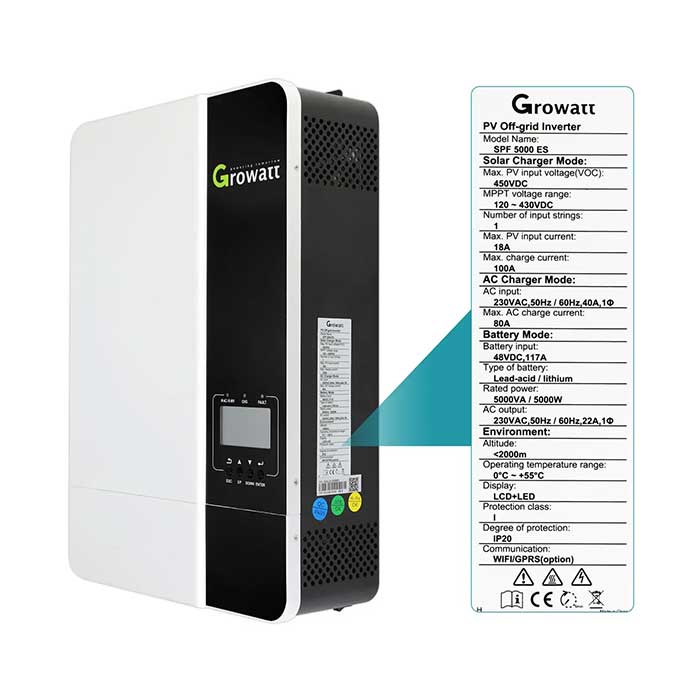

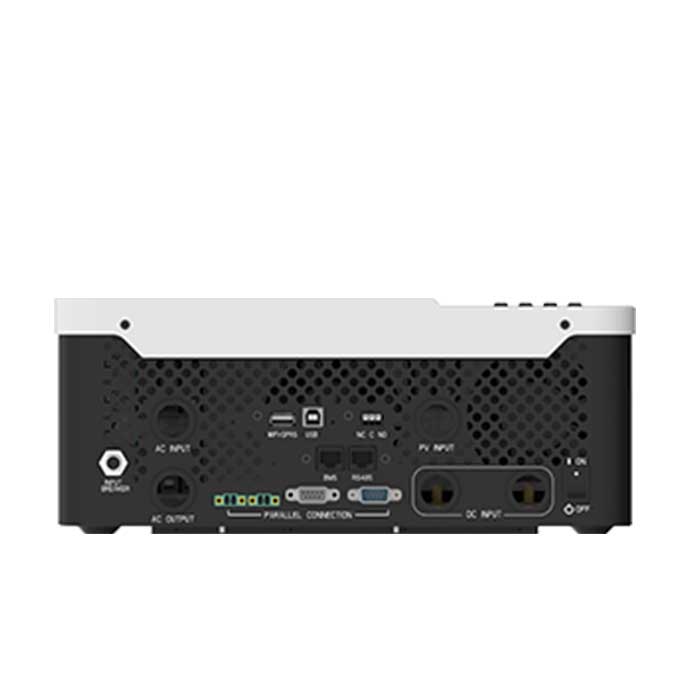

Growatt 5kw 48V Inverter SPF 5000ES With Monitoring Dongle

The Growatt 5kw 48V Inverter SPF 5000ES With Monitoring Dongle, designed for residential and commercial solar power applications. This powerful unit can operate with or without a battery, providing flexibility in energy storage and consumption.

Featuring an integrated MPPT charge controller, the inverter ensures efficient solar energy harvesting by dynamically adjusting voltage and current based on sunlight intensity, panel temperature, and system load. This technology prevents overcharging and deep discharge, optimizing battery lifespan.

The Growatt SPF 5000 ES also supports remote monitoring via an optional WiFi or GPRS dongle, enabling users to track energy production, battery status, and load management from anywhere.

For those needing higher power output, the system supports parallel connection of up to six units, allowing for a total power capacity of 30kW.

Key Features:

✅ Operates with or without a battery – Flexible energy management.
✅ 5kW pure sine wave output – Stable and clean power supply.
✅ 450VDC Maximum PV Input Voltage – Supports high-efficiency solar setups.
✅ Integrated 100A MPPT Charge Controller – Optimized solar charging.
✅ Parallel Operation up to 30kW – Scalable for higher power demands.
✅ WiFi/GPRS Remote Monitoring (Optional) – Easy system tracking.
✅ UPS Functionality – Uninterrupted power during outages.
✅ High Efficiency & Reliability – Advanced power management system.

Technical Specifications of Growatt 5kw 48V Inverter SPF 5000ES With Monitoring Dongle

• Model: Growatt SPF 5000 ES
• Rated Power: 5000W (5kW)
• Battery Voltage: 48V
• Battery Compatibility: Lead-Acid / Lithium
• Maximum PV Input Voltage: 450VDC
• MPPT Charge Controller: 100A
• Parallel Capability: Up to 6 units (Total 30kW)
• AC Output Voltage Regulation: 230V ± 5% @ 50/60Hz
• Surge Power: 10kW
• Efficiency: 93%
• Waveform: Pure Sine Wave
• Remote Monitoring: WiFi/GPRS Dongle (Optional)
• Protection Features: Overload, Short Circuit, Overcharge & Deep Discharge Protection
• Dimensions: Compact and space-saving
• Operating Temperature: 0°C – 55°C
• Warranty: 2 Years

Why Choose the Growatt SPF 5000 ES?

✅ Flexible & Reliable – Works with or without batteries for continuous power.
✅ High Efficiency & Performance – Advanced MPPT charge controller ensures maximum solar energy utilization.
✅ Scalability – Expand your system up to 30kW with parallel connections.
✅ Smart Monitoring & Control – Optional WiFi/GPRS monitoring for remote access.
