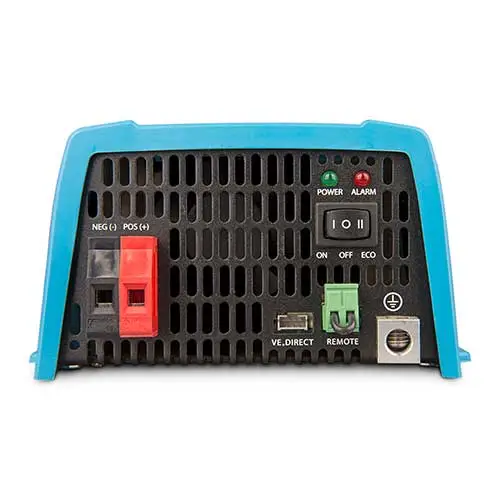

The Victron Phoenix 1200VA 12V Solar Inverter is a high-performance pure sine wave inverter that converts 12V DC to 230V AC power. Ideal for off-grid applications, including campervans, RVs, boats, and small homes. Features ECO mode, high start-up power, and remote monitoring via VE.Direct smart dongle.
🔹 Key Features
✅ Pure Sine Wave Output – Powers all 230V appliances safely & efficiently.
✅ 1200VA Max Continuous Power – Runs laptops, blenders, toasters, and more.
✅ High Start-Up Power – Supports LED power converters, halogen lamps, and tools.
✅ Remote Monitoring & Control – Compatible with VE.Direct smart dongle for the Victron Connect App.
✅ ECO Mode for Energy Saving – Automatically enters standby mode to reduce power usage.
✅ Remote On/Off Function – Connect a control panel switch for easy operation.
✅ Short Circuit & Overheat Protection – Ensures reliable and safe operation.
✅ Compact & Lightweight Design – Easy to install and transport.
🔹 Technical Specifications
| Feature | Specification |
|---|---|
| Model | Victron Phoenix 1200VA 12V |
| Continuous Output Power | 1200VA |
| Peak Power | 2400W |
| Input Voltage | 12V DC |
| Output Voltage | 230V AC (adjustable 210V – 245V) |
| Output Frequency | 50Hz or 60Hz |
| Waveform | Pure Sine Wave |
| Efficiency | Up to 92% |
| Low Battery Alarm | Yes |
| Low Battery Cut-Off | Yes |
| ECO Mode | Yes (Min Load: 15VA) |
| VE.Direct Connectivity | Yes (with optional smart dongle) |
| Short Circuit Protection | Yes |
| Overheat Protection | Yes |
| Remote On/Off | Yes (via control switch) |
| Weight | 8.5 kg |
| Dimensions (L×W×H) | 375 × 214 × 110 mm |
| Application Areas | Campervans, Motorhomes, Boats, Off-Grid Homes |
🔹 Applications
🔹 Off-Grid Power Systems – Perfect for cabins, tiny homes, and remote locations.
🔹 Campervans & RVs – Provides reliable power for travel adventures.
🔹 Boats & Marine Use – Stable AC power on water.
🔹 Backup Power Solutions – Ensures continuous electricity during power cuts.
🔹 Smart & Efficient Power Management
✅ VE.Direct Smart Dongle (Optional) – Enables real-time monitoring & configuration via Victron Connect App.
✅ Programmable Alarms & Cut-Offs – Get notified about low/high voltage conditions.
✅ Dynamic Cut-Off – Load-dependent cut-off levels for battery protection.
✅ ECO Mode – Saves power by switching to standby mode when load is low.
