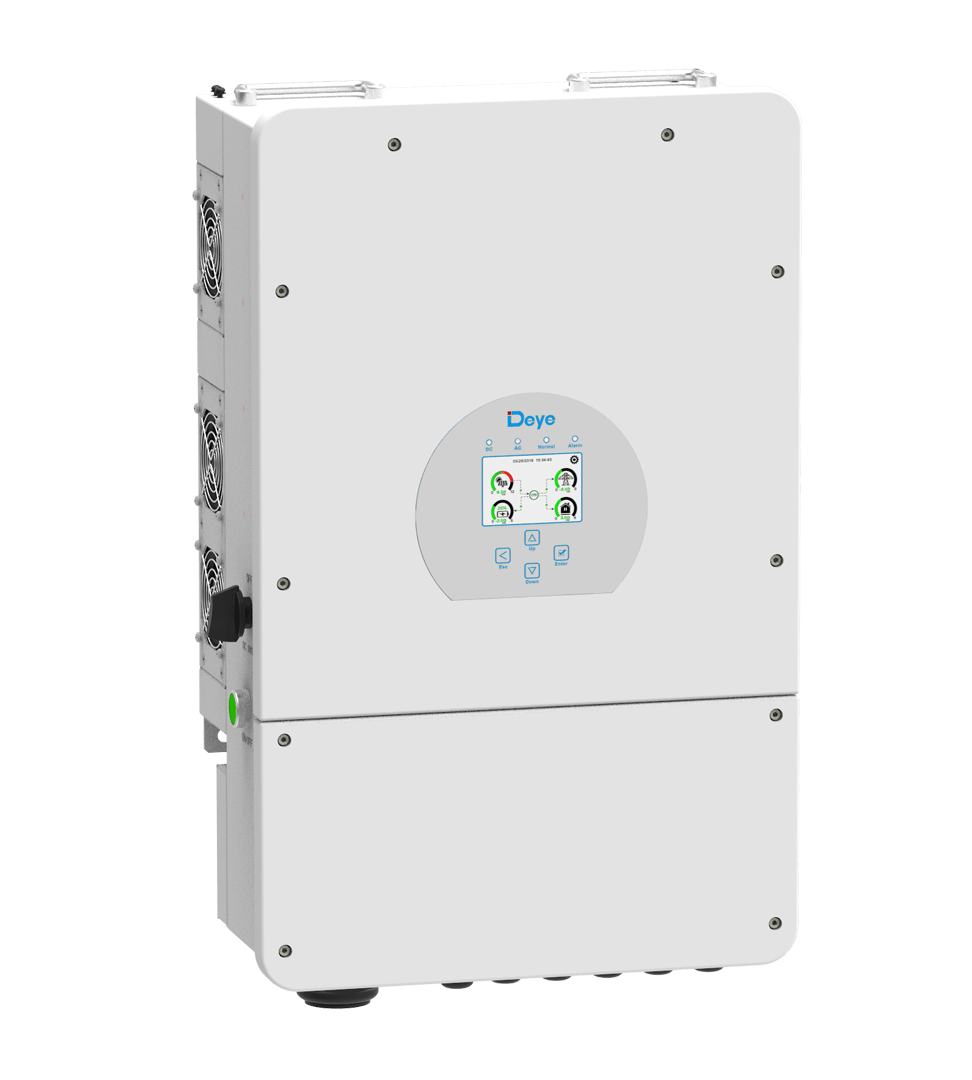

The Deye 16kW Hybrid Solar Inverter (Model: SUN-16K-SG01LP1-EU) is a high-capacity, single-phase hybrid inverter designed for residential and commercial solar systems. It supports lead-acid & lithium-ion batteries, provides a 16kW AC output, and features dual MPPT for optimized solar energy conversion. With an IP65-rated enclosure, colorful touch LCD, and multiple charging & discharging periods, this inverter is ideal for on-grid, off-grid, and backup power applications.
✅ High Power Output (16kW AC) – Supports large-scale energy systems with powerful single-phase output.
✅ Dual MPPT Technology – Ensures maximum solar energy harvesting, even in variable shading conditions.
✅ Battery Compatibility – Works with lead-acid and lithium-ion batteries for flexible energy storage.
✅ Smart Energy Management – Allows 6 programmable time periods for optimized charging & discharging schedules.
✅ Max. Charging/Discharging Current: 290A – Supports fast energy transfer, ideal for large battery banks.
✅ Parallel Operation – Supports up to 16 units in parallel for both on-grid and off-grid applications.
✅ Diesel Generator Integration – Capable of storing energy from a diesel generator, enhancing hybrid power solutions.
✅ Colorful Touch LCD Display – Provides real-time system monitoring and control.
✅ IP65 Protection Rating – Designed for indoor & outdoor installations, ensuring durability in harsh conditions.
🔹 Technical Specifications
| Feature | Specification |
|---|---|
| Model | SUN-16K-SG01LP1-EU |
| Rated AC Output Power | 16,000W (16kW) |
| Battery Type | Lead-acid / Lithium-ion |
| Grid Type | Single Phase |
| Max. Charging/Discharging Current | 290A |
| MPPT Controllers | Dual MPPT |
| Battery Charging Modes | 6 programmable time periods |
| Parallel Operation | Max. 16 units for on-grid & off-grid |
| Diesel Generator Support | Yes |
| Protection Rating | IP65 (dust & water-resistant) |
| Display | Colorful Touch LCD |
| Size (mm) | 464W × 798.4H × 300D |
| Weight (kg) | 48.5kg |
📦 Order Now – Contact us for pricing, installation guidance, and bulk discounts!
